Compact Cooling Centrifuges
Roll over image to zoom in

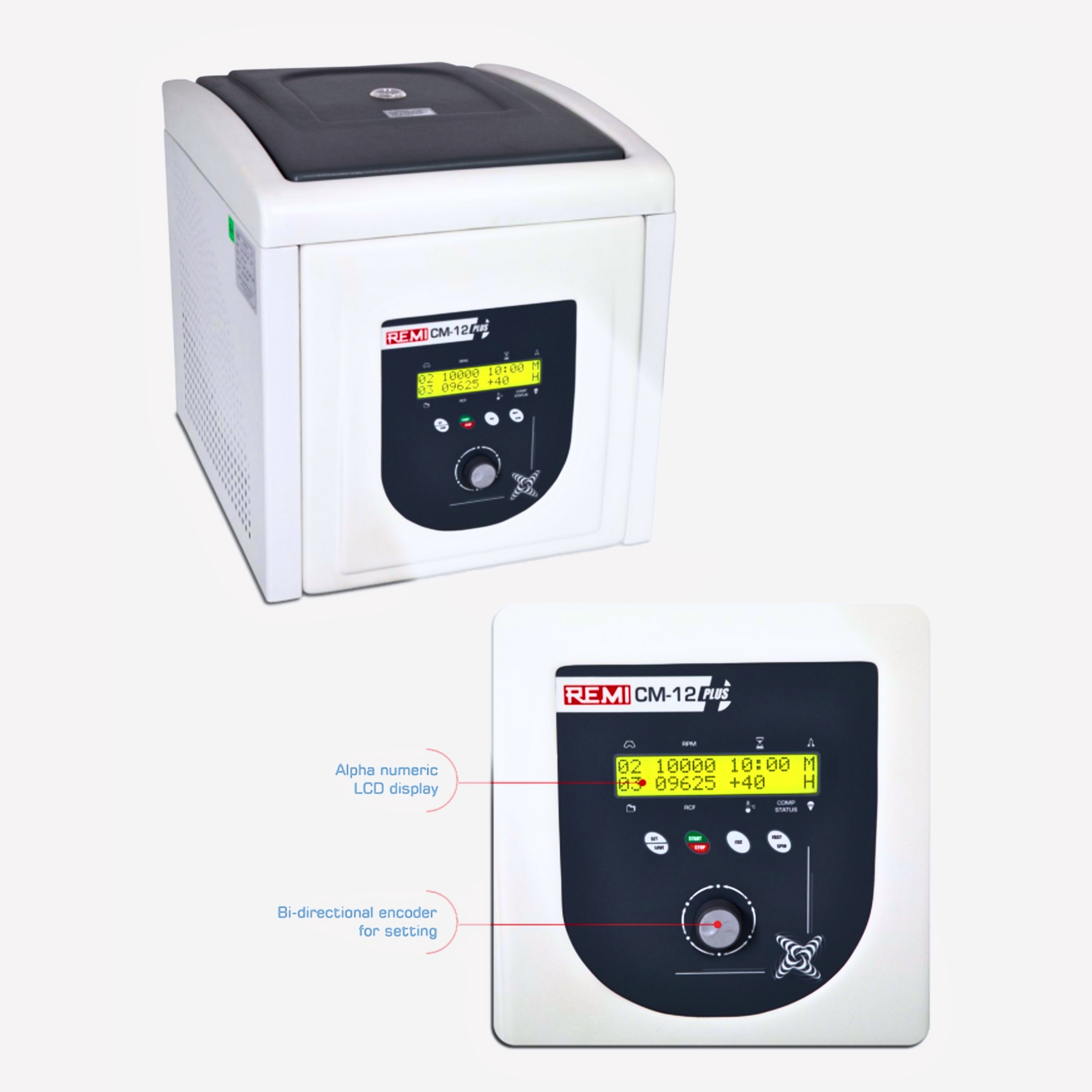

These newly developed compact bench top Cooling Centrifuges models CM-8 Plus and CM-12 Plus offers quiet operation with very small footprint. Centrifuge model CM-8 Plus is suitable for routine sample analysis in Medical, Hospital, Pathology and Institutional laboratories. With a wide choice of rotor heads and adaptors, this unit is truly versatile Micro Centrifuge model CM-12 Plus is useful for routine applications in bio-technology, PCR, life sciences, bio-chemical and clinical labs etc. This unit is ideal for centrifugation with micro tubes from 0.2 ml upto 1.5 ml.
Specification
- Stable speed output
- High Capacity (CM-8 Plus)
- High Speed (CM-12 Plus)
- Wide variety of rotors & reduction adaptors
- Precise temperature control up to –8°C
- Pre-cooling feature
- Fast spin feature
- Calibration window on lid for speed (rpm)
- Brushless Induction motor with variable frequency drive ensures gentle start
- Microprocessor based unit with alpha numeric LCD display
- Self-diagnosis of errors
- Parameters setting through easy to use bi-directional encoder
- Inverter fault detection with auto shutdown
- CFC free refrigeration system
- 24 programme memory
- 3 Accelerations, 4 Deceleration profiles
- Choice of rpm / rcf setting & display
- Operating panel with feather touch keys
- Digital countdown timer 0–99 minutes & continuous run
- Last set parameters recall (Useful for repetitive analysis)
- Automatic Rotor identification
- Safety lid interlock to prevent lid opening during centrifugation
- Imbalance detection & centrifugation stop with display of error
- Motor overload protection
- Gas hinge to prevent falling of door
- Emergency lid lock release
Technical Data
| Technical Data | ||
|---|---|---|
| CM – 8 Plus | CM – 12 Plus | |
| Max. Speed (rpm) | 6000 | 16000 |
| Max. RCF (g) | 5070 | 16600 |
| Max. Tube Size (ml) | 100 | 5 |
| Max. Capacity (ml) | 400 | 40 |
| Min. Temperature (°C) | -8 | -8 |
| #Noise | ≤ 60 dB | ≤ 60 dB |
| Dimensions WxDxH (mm) | 480 x 585 x 530 | |
| Voltage Stabilizers | VS – 02 | VS – 02 |
| Supply: 220-240 Volts 50 Hz single Phase | ||
* Note: Depending on capacity, type of rotor centrifugation speed, ambient temperatures and other process parameters
CM - 8 Plus
Rotors for CM-8 Plus
| Models | Capacity | Type of Container | MAX. RPM | MAX. RCF |
|---|---|---|---|---|
| Swing Out Rotors | ||||
| R-90 M | 4 x 100 ml | Glass Tubes with Bio-safety Caps | 4000 | 2500 |
| R-81 M | 16 x 15 ml | Glass Tubes | 4500 | 3455 |
| R-81B M | 8 x 15 ml | Glass Tubes | 4500 | 3455 |
| R-82 AM | 4 x 50 ml | Glass Tubes | 4500 | 3455 |
| Angle Rotors | ||||
| R-83 BM | 8 x 15 ml | Polypropylene tubes | 6000 | 4700 |
| R-89 M | 24 x 1.5 ml | Polypropylene tubes | 6000 | 5070 |
| R-84 M | 6 x 50 ml | Polypropylene tubes | 6000 | 4700 |
| R-88 M | 4 x 100 ml | Polypropylene tubes | 6000 | 4530 |
Rotors for CM-12 Plus
| Models | Capacity | Type of Container | MAX. RPM | MAX. RCF |
|---|---|---|---|---|
| RM-1214 M | 10 x 2 ml | Glass Tubes | 16000 | 16600 |
| RM-1215 M | 24 x 1.5 ml | Polypropylene tubes | 11850 | 12175 |
| RM-1216 M | 8 x 5 ml | Polypropylene tubes | 11850 | 13500 |
| RM-1217 M | 4 x 8 PCR Strips of 0.2ml | Polypropylene tubes | 12000 | 11910 |
Reduction Adaptors for CM-8 Plus
| Models | Capacity | R-81 M | R-81B M | R-82 AM | R-83 BM | R-84 M | R-88 M | R-89 M | R-90 M |
|---|---|---|---|---|---|---|---|---|---|
| RA-151 | 1 x wintrobe | √ | √ | X | X | X | X | X | X |
| RA-152 | 1 x 3ml | √ | √ | √ | X | √ | X | √ | X |
| RA-153 | 1 x 5ml | √ | √ | √ | √ | √ | √ | √ | √ |
| RA-154 | 1 x 8ml | √ | √ | √ | X | √ | X | X | X |
| RA-155 | 1 x 4ml | √ | √ | √ | X | √ | X | X | X |
| RA-156 | 1 x 8ml | X | √ | √ | √ | X | X | X | X |
| RA-157 | 1 x 50ml | X | X | X | X | √ | √ | X | √ |
| RA-158 | 1 x 30ml | X | X | X | X | √ | √ | X | √ |
| RA-159 | 1 x 15ml | √ | √ | √ | √ | √ | √ | √ | √ |
| RA-160 | 1 x 15ml | X | X | X | √ | X | √ | X | X |
| RA-161 | 1 x 50ml | X | X | X | X | √ | X | X | X |
| RA-501 | 1 x 15 ml | X | X | X | X | X | X | X | X |
| RA-502 | 1 x 30ml | X | X | X | X | X | X | X | X |
| Suitable for Falcon Tubes (without tubes) | |||||||||
| RA-503F | 1 x 15ml | X | X | X | X | √ | X | X | X |
| RA-160F | 1 x 15ml | X | X | X | X | √ | X | X | X |
| RA-161F | 1 x 50ml | X | X | X | X | √ | X | X | X |
| Suitable for Vacutainer Tubes (without tubes) | |||||||||
| RA-162 | 1 x up to 5ml (75 mm long) | X | X | X | X | √ | X | X | X |
| RA-163 | 1 x up to 6ml (100 mm long) | X | X | X | X | √ | X | X | X |
| RA-164 | 1 x up to 10ml (100 mm long) | X | X | X | X | √ | X | X | X |
| RA-167 | 2 x up to 6ml (100 mm long) | X | X | X | X | √ | X | X | X |
| RA-168 | 3 x up to 10ml (100 mm long) | X | X | X | X | √ | X | X | X |
