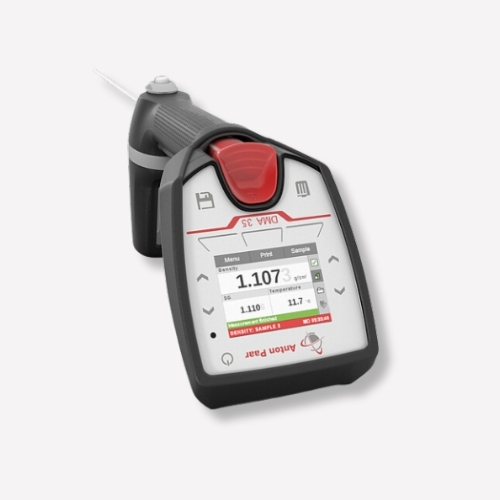

Density meter Model DMA 35 Basic
Roll over image to zoom in
₹309,010.00
- Quality checks in the field, e.g. on wine and wine must (°Brix, °KMW, Oechsle, Baumé)
- Checks for wort and apparent extract in beer (°Plato)
- Fermentation graph for each tank directly on the screen
- One device replaces all glass hydrometers in the workplace
Key features
- Designed for on-site density measurements
- Intrinsically safe – for use in hazardous locations
- Fastest filling and measurement – for a huge variety of samples
- Perfect traceability of density and concentration results
- Leave your glass hydrometer or pycnometer for a digital density meter
Specifications
| Features general | Smart connection of measuring cell: Patent AT516420 (B1), EP2854376 (B1), US9228916 (B2) |
|---|---|
| Other general features | Measuring connection for reliable measurements, even on highly viscous samples; Calibration and adjustment via standard measurements; Identification of fluids outside pre-defined limits |
| Measuring range | Density: 0 g/cm³ to 3 g/cm³; Temperature: 0 °C to +100 °C (+32 °F to +212 °F) |
| Accuracy | Density: 0.0001 g/cm³; Temperature: 0.03 °C (0.05 °F) |
| Repeatability | Density: 0.00005 g/cm³ |
| Reproducibility | Density: 0.00007 g/cm³ |
| Temperature control | 0 °C to +100 °C (+32 °F to +212 °F) |
| Display resolution | Density: 0.00001 g/cm³; Temperature: 0.01 °C (0.01 °F) |
| Ambient temperature | Standard Version: +10 °C to +40 °C (+50 °F to +104 °F); Extended Version: 0 °C to +45 °C (+32 °F to +113 °F) |
| Supported measuring units | Specific gravity, Alcohol (various units), Sugar (various units), API, Brix, Plato, Baumé, Custom-specific measuring units |
| Sample volume | 2 mL |
| Dimensions (W × D × H) | 206 mm × 103 mm × 126 mm |
| Data memory | 1024 measuring values, 30 measuring methods, 250 sample IDs |
| Power supply | Three 1.5 V (LR6/AA) batteries or rechargeable batteries |
| Interface | Micro-USB, microSD (both included by default) |
| Protection class | IP54 (5 – protection against dust-limited ingress; 4 – protection against splash water from any direction) |
| Permissible density of samples | 0 g/cm³ to 3 g/cm³ |
| Permissible viscosity of samples | Up to 36,000 mPa·s |
| Interface languages | English, German, Chinese, Japanese, French, Russian, Italian, Portuguese, Turkish, Spanish |
| Available options | Bluetooth® interface with Bluetooth® interface |
| Scope of supply | DMA 35, carrying strap, filler syringe, adapter for syringe filling, syringe, transportation case, rubber protection for measuring cell, three 1.5 V batteries, short instruction manual |
| Available versions | DMA 35, DMA 35 Ex, DMA 35 Ex Petrol, DMA 35 Ampere, DMA 35 Tag and Collect; Extended Version: DMA 35 Ex Petrol EV, DMA 35 Ex EV |
