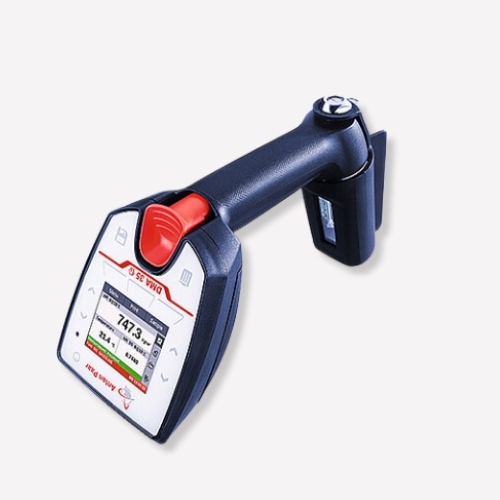

Density meter Model DMA 35 EX Petrol
Roll over image to zoom in
₹479,000.00
- For measuring petroleum samples in hazardous environments
- The only intrinsically safe portable density meter on the market (Ex marking [Ex] II 2 G Ex ib IIB T4)
- Fully complies with the ASTM D7777 and IP 559 standards
- Protection class IP54
Key features
- Designed for on-site density measurements
- Intrinsically safe – for use in hazardous locations
- Fastest filling and measurement – for a huge variety of samples
- Perfect traceability of density and concentration results
- Leave your glass hydrometer or pycnometer for a digital density meter
- Quickly determining the state of charge of lead-acid batteries
Specifications
| Patents granted | Smart connection of measuring cell: Patent AT516421 (B1), EP3013847 (B1), CN 106517062 B |
|---|---|
| Other special functions | Viscosity correction for reliable measurements, also on highly viscous samples; Gesture control for easy one-handed measurements; Identification of results outside your specified limits |
| Measuring range | Density: 0 g/cm³ to 3 g/cm³; Temperature: 0 °C to 40 °C (+32 °F to 104 °F) |
| Accuracy | Density: 0.001 g/cm³; Temperature: 0.2 °C (0.4 °F) |
| Repeatability, sd | Density: 0.0005 g/cm³; Temperature: 0.1 °C (0.2 °F) |
| Reproducibility, sd | Density: 0.0007 g/cm³ |
| Digital Resolution | Density: 0.0001 g/cm³; Temperature: 0.1 °C (0.1 °F) |
| Ambient temperature | Standard Version, Ampere Version: -10 °C to +50 °C (+14 °F to 122 °F); Ex and Ex Petrol version: -10 °C to +40 °C (+14 °F to 104 °F) |
| Supported measuring units |
• Specific gravity • Alcohol tables • Sugar/extract tables • API functions • ρ20, BMEP tables • Ten programmable custom-specific measuring units |
| Sample volume | 2 mL |
| Dimensions (L × W × H) | 245 mm × 103 mm × 126 mm |
| Data memory | 1200 measured results, 30 measuring methods, 250 sample IDs |
| Power supply | Three 1.5 V LR6/AA alkaline batteries |
| Weight | 660 g |
| Interface | Bluetooth®, RFID/NFC (both included by default) |
| Protection class | IP54 (First digit 5 – protection against dust ingress; second digit 4 – protection against splash water from any direction) |
| Intrinsic safety of Ex and Ex Petrol version | ATEX: II 2G Ex ib IIB T4 Gb; IECEx: Ex ib IIB T4 Gb |
| Menu language | English, German, Chinese, Japanese, French, Russian, Italian, Portuguese, Turkish, Spanish |
| Available options | Enlarged filling tube; Portable thermal printer with Bluetooth® interface; RFID/NFC data adapter; Wristband; Charging cradle; ISO calibration |
| Scope of supply |
Portable density meter, filling tube, adapter for syringe filling, syringe, transportation case, rubber protection for measuring cell, three 1.5 V batteries, Allen key, instruction manual
* Measuring range 0 °C to 40 °C (+32 °F to 104 °F) ***** Sample ID and formula (DMA 35 Standard, DMA 35 Ampere, DMA 35 Ex, DMA 35 Ex Petrol) |
