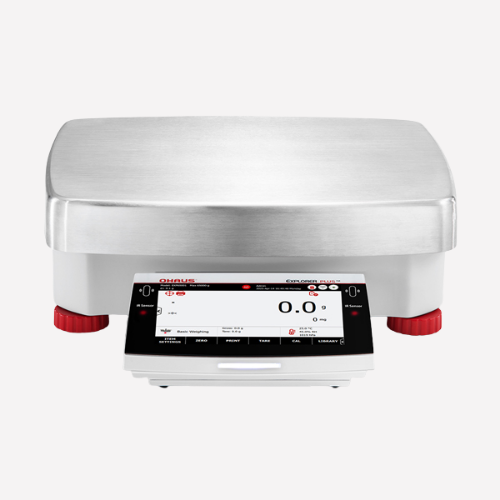

Explorer Plus™ High Capacity EXP Features
Explorer Plus™ High Capacity EXP Features
- Seamless setup with motorized leveling, anti-pinch auto doors, touchless sensors, ionizers and draftshield lights. A 7-inch glass touchscreen, chemical protection and 2 customizable status lights.
- Ensure compliance with 4-level user system, password protection, and 100k internal system log. The time synchronization NTP function confirms data traceability to meet pharmaceutical regulations.
- Advanced communication capabilities with straightforward integration to Laboratory Information Management Systems (LIMS), and hassle-free data transfer with driverless HID for easy data input.
Product Details
Product Details
Applications
- Basic Weighing
- Parts Counting
- Check Counting
- Percent Weighing
- Check Weighing
- Dynamic Weighing
- Totalization
- Formulation
- Differential
- Density Determination
- Peak Hold
- SQC
- Fill Weight Variation
- Flow Rate Control
Display
- 7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Operation
- AC Input: 100-240 VAC 0.5A 50-60 Hz
Communication
- USB Host (Type A) x 2
- USB Device (Type C) x 1
- Ethernet (RJ45) x 1
- RS232 x 1
- Optional Wi-Fi and Bluetooth Dongle
Construction
- Modular design
- IP54 rated base
- Metal base and housing
- SST 304 weighing pan
- Integral weigh below hook
- 3 ambient sensors
- 2 touchless sensors
- Terminal status light
Design Features
- Time Synchronization NTP
- Support for HID (Human Interface Device) connection to a computer without drivers
- 4-level User Management and Internal System Log Capacity of 100,000 Entries
- 3000 Application Sample Libraries
