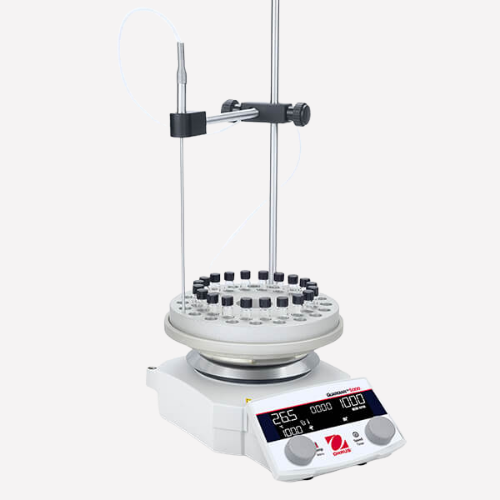

Guardian™ 5000 Hotplates & Stirrers

Expertly Engineered Hotplate Stirrers with Premium Safety and Versatility Features for Everyday Use

The Next Generation Guardian 5000^TM Hotplate Stirrers are engineered for safety and versatility across research, academic, and industrial settings. They offer powerful heating and mixing, with premium hardware and software to support diverse users safely and reliably. Heating models reach up to 550°C and feature three temperature control modes for quick heating or precise heating without overshoot. Select from five models with three plate sizes.

Guardian™ 5000 Hotplates & Stirrers Features

Our signature SafetyHeat™ and SmartHeat™ features combined with the new Run Dry Protection system* plus the Time Run mode and the optional Splash Shield provide complete safety.
The evolved SmartRate™ system supports heating & stirring from fast and intensive to soft and precise, with a range of accessories to empower a variety of applications.
An intuitive user interface featuring a large, bright LCD screen with white characters & knob button(s), allows for user friendly operation. RS232 port included for remote control or data logging.

Product Details

Applications

Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization,
Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation,
Dissolving Buffers and Reagents, Preparing Media, Boiling

Display

Backlit LCD display with white characters, integrated heating/stirring status indicators in green,
and a prominent hot top indicator in yellow.

Operation

100-120 VAC or 220-240 VAC 50/60Hz power entry, rotary switch knob(s) control.

Communication

RS232 for data logging and remote control.

Construction

Robust full metal housing, ceramic square top plate or ceramic-coated aluminum round top plate,
high performance SmCo magnet.

Design Features

Large dip angle front panel for easy monitoring from a distance, smooth enclosure surfaces for easy cleaning,
audible alarm, IP32 protection, rapid install splashing shield (optional).
