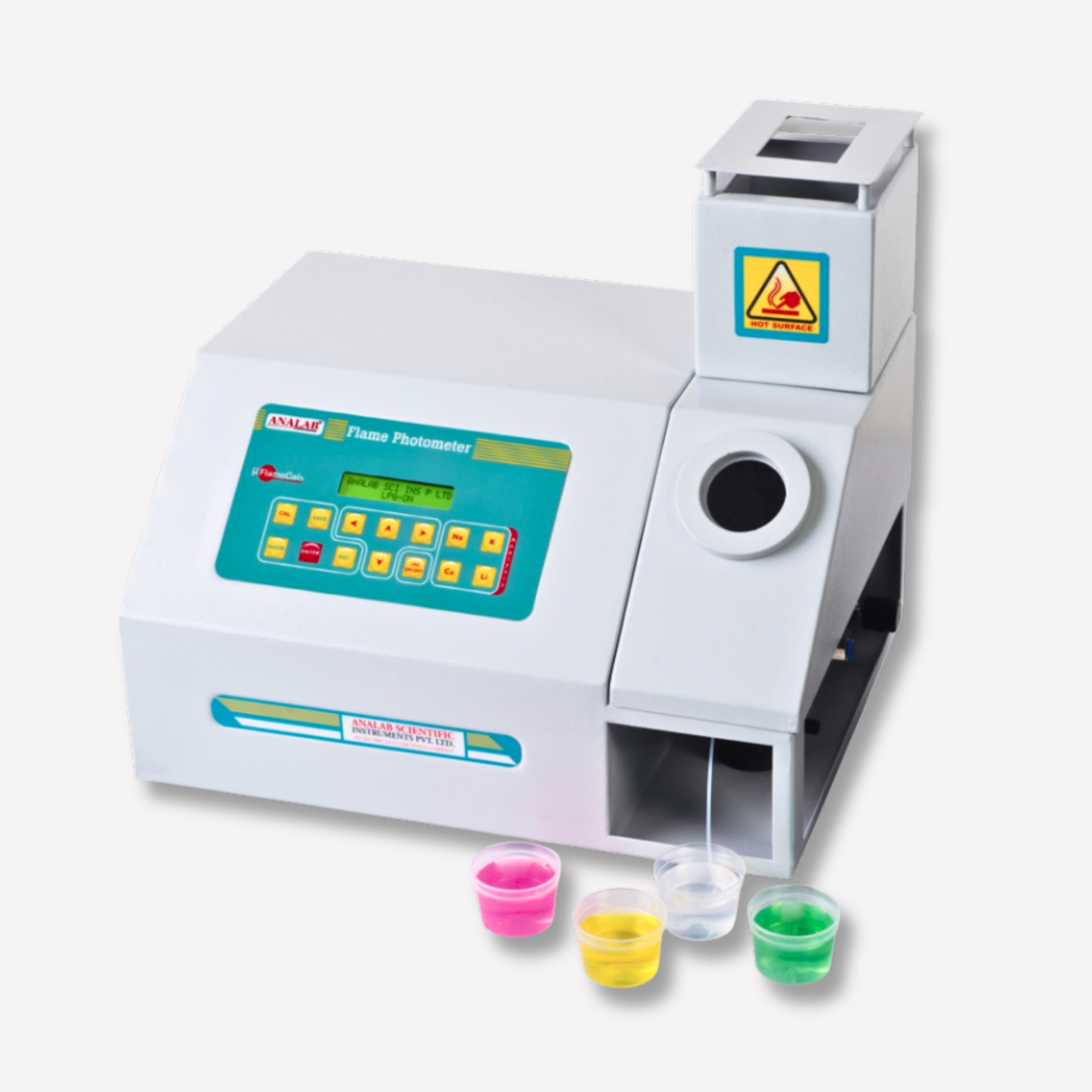

Model : µFlameCal10 | Make : ANALAB |

Technical Specification

• Element Range: Na, K, & Li: 1-200 ppm, Ca: 15-300, Ba: 30-3000 ppm
• Sensitivity: Na: 0.5 ppm, K: 0.5 ppm, Li: 0.5 ppm, Ca: 15 ppm, Ba: 50 ppm
• Filter Selection: Automatic by soft touch key
• Resolution: 0.1 ppm
• Detector: Silicon Photodiode
• Linearity: Better than 2%
• Unit of Measurement: ppm
• Reproducibility: <1% Coefficient of Variation (CV) for 20 consecutive samples using 10 ppm Na set as maximum standard & Barium 3% CV for 20 consecutive samples of Concentrations between 50 to 199 ppm.
• Curve Fitting Accuracy: <1% error when 3 ppm Na/K and 5 ppm Li are set as maximum standards.
• Quick Calibration Facility: With highest standard
• Dilution Factor: Yes, by soft touch keypad
• Calibration: Upto 03 standards per Elements with Curve Fitting Software in-built with Instrument. (Automatic calculation of curve coefficient)
• Measurement of Sample: Multi elements in single aspiration OR one by one.
• Flame Type: LPG & Dry Oil Free Air
• Auto LPG Shut-off at Power Off: Safety feature in case of sudden power failure.
• Auto Flame ON / OFF Detection: Audio and Visual Alarm
• Gas Control: Adjustable with Regulator
• Atomizer: Axial Flow Type
• Air Flow Monitoring Facility: 4 – 8 ml/min., in-built with Instrument
• Error Messages: “Home Detection”, “Memory Full”, “Flame is Off”, “Value Out of Limit”, “Do Warm-up”, “In Correct Standard” & “Enter in Range”.
• Display: 20 x 2 Line Alphanumeric LCD with Backlit
• Keypad: Membrane waterproof polycarbonate soft touch keypad; UL/ROHS compliant
• Air Supply Unit (Separate Unit): Air Compressor, Pressure Gauge, Regulator, Moisture Filter, PU Tube (2 Meters) and Air Filter with moisture absorbent catalyst
• Calibration Data Storage: Non-Volatile Memory with data like report date & time, company name, calibration date & time, calibration done by, standard results, instrument serial number etc.
• Analysis Data Storage: More than 900 analysis data which can be viewed & printed. Includes details like record number, username, sample name, batch number, sample ID, calibration data, instrument number etc. Secondly, data can be printed online (real-time) or stored.
• Print Option: Online (as & when analysis is done) & offline (from keyboard, but will be handwritten)
• Search Option: With record number by scrolling
• Password Protection: As per Non-CPI Compliance
• Printer Interface: Centronics Parallel Port / Serial (RS-232 C) Port
• Printer: 40/80 Column Dot Matrix Printer (Printer must be procured optionally)
• Power Supply: 230VAC ± 10%, 50 Hz
