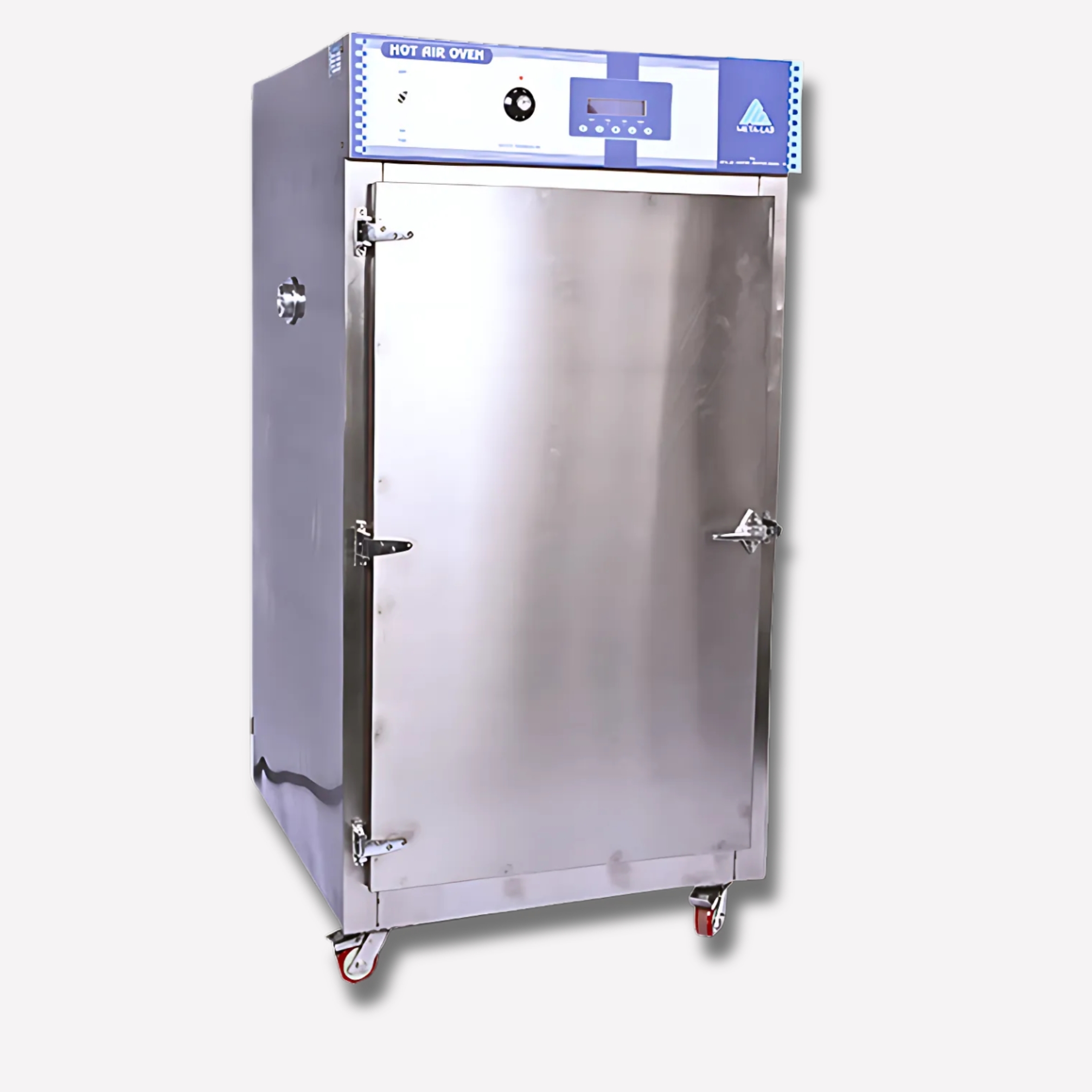

MSI-77 Hot Air Oven (Memmert Type) Gmp Model
Roll over image to zoom in
The MSI‑77 Hot Air Oven (Memmert Type, GMP Model) is designed for pharmaceutical and regulated labs, offering precise heating from 50 °C to 250 °C with ±2 °C accuracy. It features a triple-walled stainless steel body, energy-efficient heaters, and forced-air circulation for uniform temperature. Optional add-ons include a timer, safety thermostat, data logger, and 21 CFR Part 11–compliant PC connectivity.
Technical Specification
- Triple walled construction.
- Fully made of Stainless Steel 304.
- Inner mirror finish & exterior matt finished.
- Gap between the two walls filled with glasswool insulation.
- Fully insulated door with Silicon gasket & brass lock hinges.
- Heating is by specially designed energy efficient Air heaters.
- Heaters are fitted at two sides of oven.
- Supplied with SS rod shelves & Aluminum ventilator.
- Microprocessor based Auto Tune PID temperature controller.
- Simplex A class transition joint PT 100 sensor.
- Temperature deviation alarm.
- Forced Air Circulating System with fan for temperature uniformity.
- Temperature Range: 50°C to 250°C
- Temp Resolution: 0.1°C
- Control Accuracy: ± 2.0°C or better.
Details
| Chamber Size in cms | Volume | Exterior Dimension | Weight (kg) | Rating | No of Shelves |
|---|---|---|---|---|---|
| 45 x 45 x 45 | 90 ltr | 75 x 75 x 100 | 60 | 1000 W | 3 |
| 45 x 45 x 60 | 120 ltr | 75 x 75 x 115 | 70 | 1250 W | 4 |
| 60 x 60 x 60 | 216 ltr | 90 x 90 x 115 | 90 | 1500 W | 4 |
| 60 x 60 x 90 | 330 ltr | 90 x 90 x 145 | 110 | 2000 W | 5 |
Optional Accessories
- Inbuilt timer
- Castor wheels for easy movability
- Single channel Data logger to print records
- RS 485 for PC communication with 21 CFR part 11 compliance software
