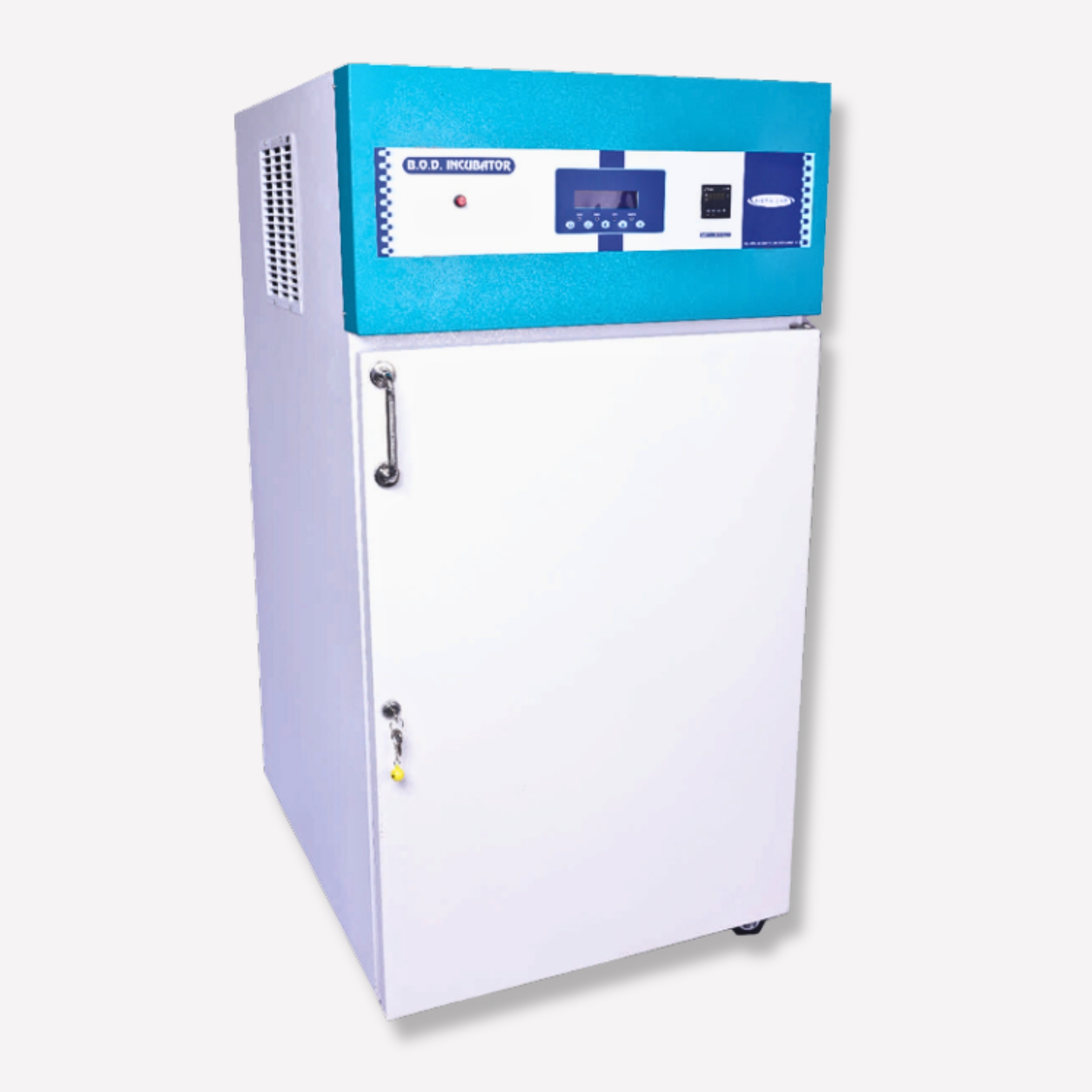

MSI 9 – B.O.D. Incubator
Roll over image to zoom in
₹78,000.00
The MSI 9 B.O.D. Incubator is designed for precise temperature control in biological and environmental testing, especially B.O.D. analysis. It features a stainless steel chamber, PUF insulation, dual doors, and a PID controller with ±0.5 °C accuracy. Ideal for labs, it offers uniform cooling from 5 °C to 60 °C, with optional data logging and 21 CFR Part 11 compliance.
Technical Specification
- Double walled construction.
- Inner made of Stainless Steel 304.
- Inner chamber mirror finished
- Exterior GI sheets powder coated
- Gap between the two walls filled with Puf insulation.
- Inner acrylic door & external metal door with magnetic gasket & lock.
- Cooling is by hermetically sealed compressor,
- CFC free refrigerant.
- Heating is by specially designed Air heaters.
- Forced Air circulating System with fan for better temperature uniformity
- Microprocessor based Auto Tune PID Temperature Controller.
- LED display for Set & Actual both.
- Simplex A class transition joint PT 100 sensor.
- Illumination by tube.
- Supplied with S.S. rod shelves.
- Temperature Range : 5.0°C to 60°C
- Temp Resolution : 0.1°C
- Control Accuracy : ± 0.5°C or better.
Details
| Capacity | Chamber Size in cms | Net Weight (Kg) | Rating | No of Shelves |
|---|---|---|---|---|
| 3 CU Ft 90 ltr | 45 x 40 x 50 | 65 | 1000 W | 2 Nos |
| 6 CU Ft 170 ltr | 50 x 50 x 70 | 80 | 1250 W | 3 Nos |
| 12 CU Ft 330 ltr | 60 x 60 x 90 | 110 | 1500 W | 4 Nos |
Optional Accessories
- Illumination by fluorescent tube
- Cyclic Digital Timer for above
- Safety Temp. controller (Recommended by us)
- Single Channel Data logger with printer output.
- RS 485 for PC communication with 21 CFR part 11 compliance Software
