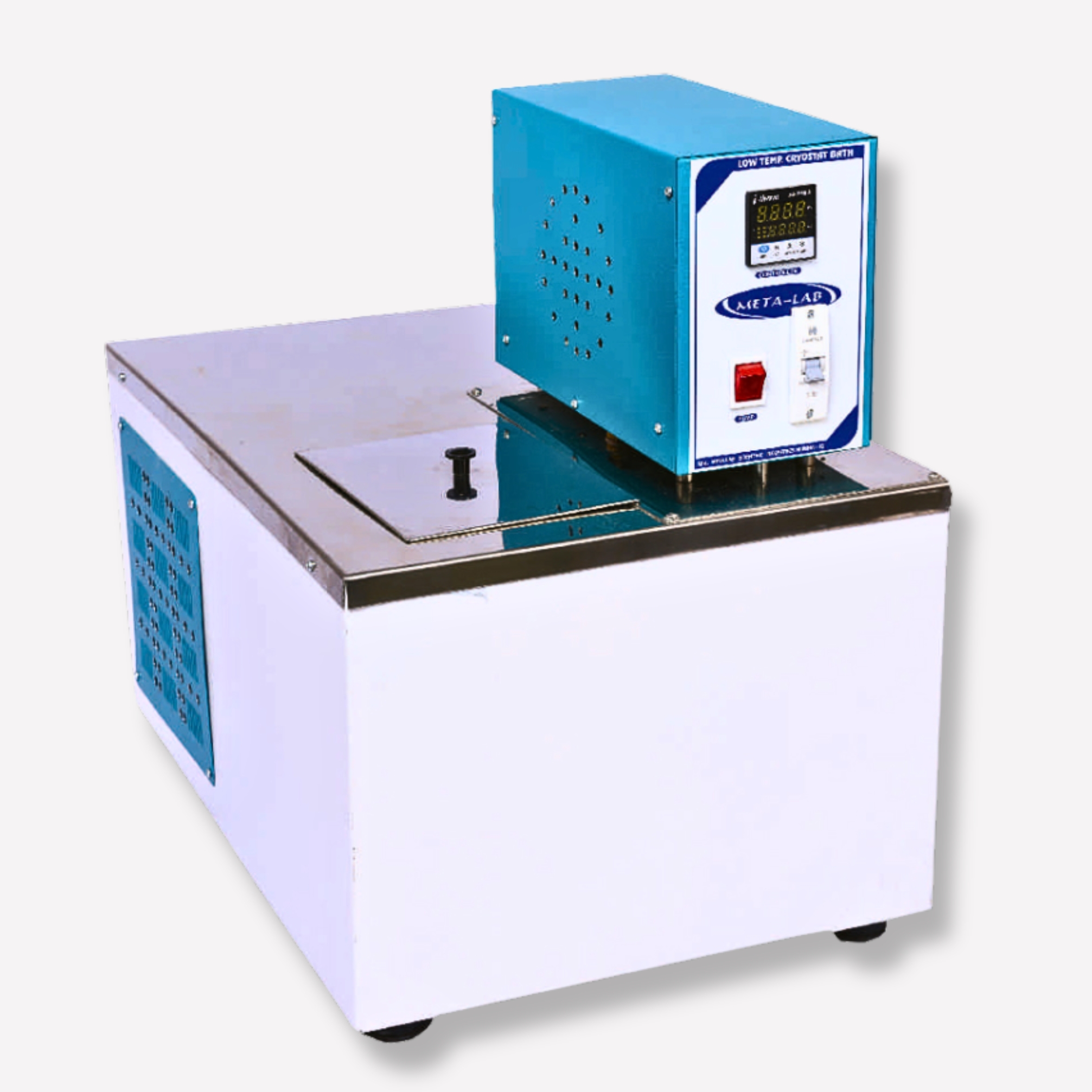

MSI 90 – Water Bath Chiller
Roll over image to zoom in
The MSI 90 Water Bath Chiller is a compact, double‑walled cooling unit designed for stable temperature control during immersion testing. Built with a galvanized powder‑coated exterior and a stainless steel inner chamber, it delivers reliable cooling between 0 °C to 40 °C, thanks to its efficient refrigeration system. Ideal for research and industrial laboratories, it ensures consistent and uniform temperature environments for sensitive samples
Technical Specification
- Table top model
- Double walled construction with small footprint
- Inner made of SS304
- Exterior GI sheets powder coated
- The gap between the two walls filled with Puff insulation
- Motor with stirrer is mounted on a base & fitted on the side of the bath
- Lid made of Stainless Steel
- Specially designed tubular Water heaters
- Cooling is by hermetically sealed compressors
- Microprocessor based Auto Tune PID Temperature Controller
- Simplex A class transition Joint PT100 sensor
- Drain valve provided to empty the water bath
- Working Size: 15 x 15 x 15 cm
- Weight: 30 kgs
- Temperature Range: 0.0°C to 40.0°C
- Temperature Resolution: 0.1°C
- Control Accuracy: 0.5°C
- Rating: 1000W
- Power Supply: 230V A.C. 50 Hz SINGLE PHASE
- Ampere: 4 amps
Details
| Bath Capacity | Size (W x D x H) Cms | Rating |
|---|---|---|
| 4 Ltr | 15 x 15 x 15 | 1000 W |
Optional Accessories
- Electronic Digital Timer Range: 0 to 999 minutes
- Single channel Data Logger with printing arrangement
- RS 485 for PC communication with 21 CFR part 11 compliance Software
