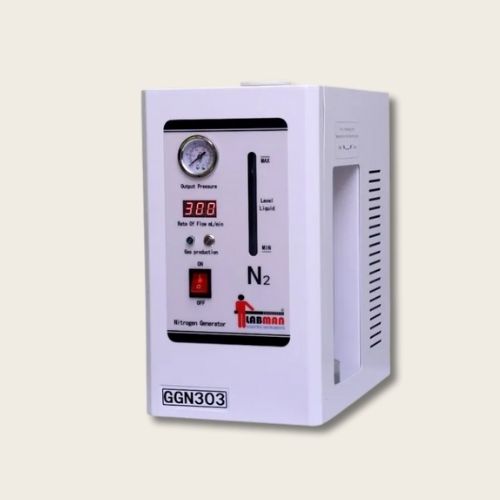

Nitrogen Generator GGN303
Roll over image to zoom in
₹100,000.00
- Nitrogen generator consists of an electrolytic cell
- Replace bulky nitrogen gas cylinders and make the laboratory instrument liquid circuit, gas purification, flow display
- Electrolytic separation cell adopts a clamp type electrolytic cell
- High gas production and good heat dissipation
- Automatically drains for 10 minutes and switches to gas production
- Easy to operate
- Electrolytic cell with high gas production and good heat dissipation
- Molecular Sieve is incinerated in a muffle furnace at 250°C – 300°C for 24 hours
Specifications
| MODEL | GGN303 |
|---|---|
| Make | LABMAN |
| Fluid Tank Capacity | 1.2L |
| Maximum Flow | 300mL/min |
| Gas purity | O2 ≤ 3ppm |
| Output Gas Pressure | 0.4MPa |
| Environmental temperature | 10°C – 40°C |
| Output Flow Display | LED Display |
| Phase | 1 Phase |
| Power Wattage | 80W |
| Power supply | AC 220V / 50Hz |
| Packing Dimension (LxWxH) | 450 × 340 × 510 mm |
| Gross Weight | 17kg |
STANDARD ACCESSORIES: Main Instrument, O-Ring, Potassium Hydroxide (KOH) 120g, Rubber Bush, Power Cord, Instruction Manual, Test Certificate
