Product Qualification
| Product Name |

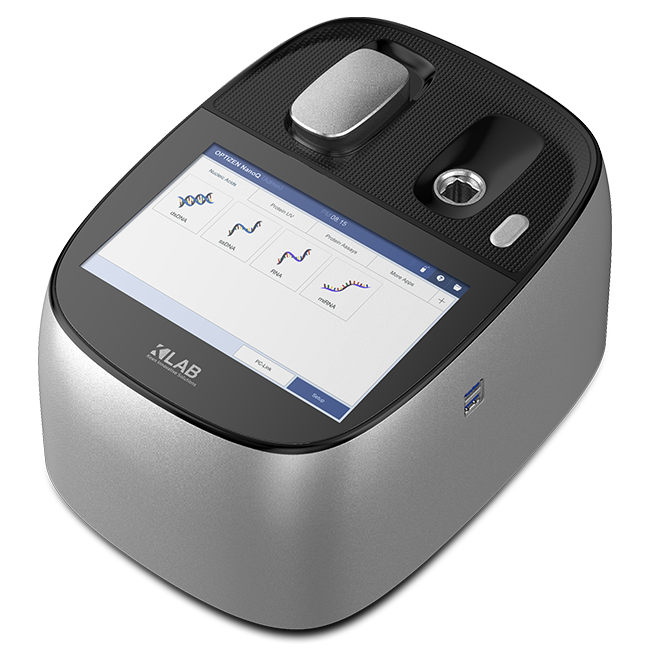

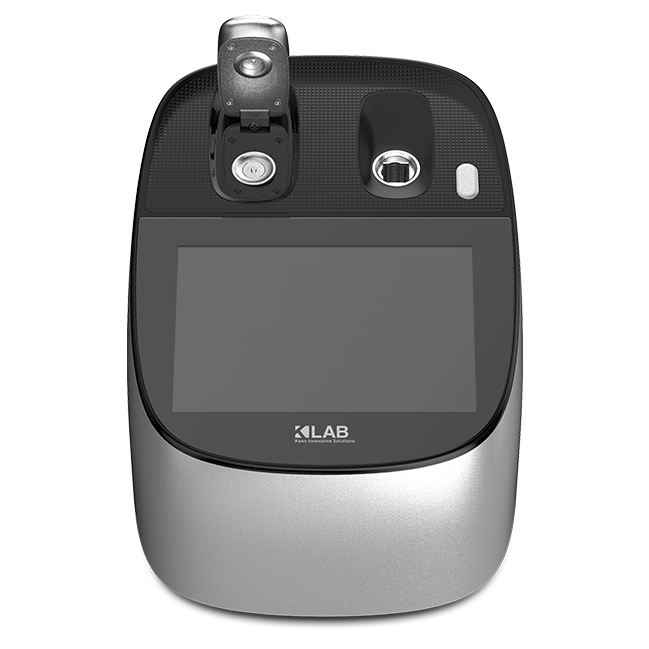

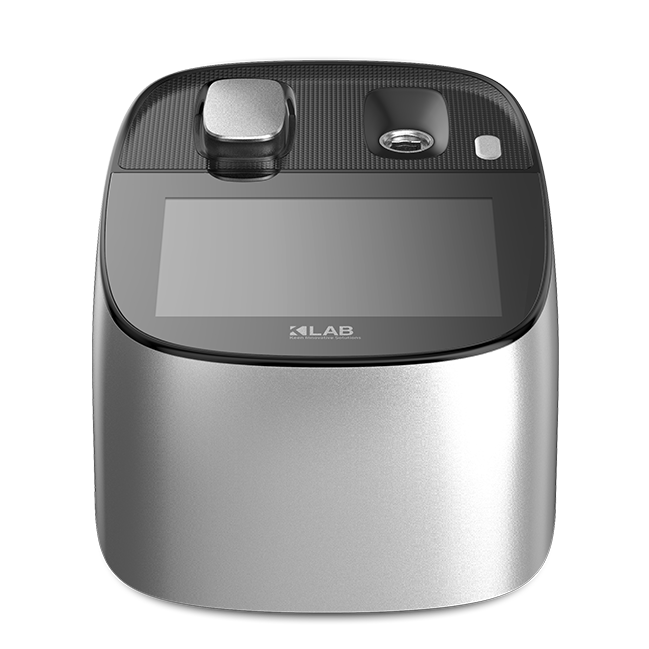

OPTIZEN NanoQ Plus |
OPTIZEN NanoQ |
| Photometric System |
Microvolume Spectrophotometer |
| Light Source(s) |
Xenon flash lamp |
| Lifetime |
Up to 10 years |
| Detector |
CMOS linear image sensor (2048 pixels) |
| Spectral Bandwidth |
1.0 nm (FWHM at Hg 253.7 nm) |
| Wavelength Range |
190 – 850 nm |
| Wavelength Display (setting) |
1 nm |
| Wavelength Accuracy |
±1 nm |
| Measurement Mode |
Microvolume |
| Minimum Sample Volume |
1 µL |
| Photometric Range |
0.04 – 550 A (10 mm equivalent) |
| Detection Limit (Microvolume) |
2 ng/µL (dsDNA)
0.006 mg/mL (BSA)
0.002 mg/mL (IgG) |
| Maximum Concentration |
27,500 ng/µL (dsDNA), 400 mg/mL (BSA) |
| Measurement Mode |
Cuvette |
| Photometric Range |
0 – 2 A |
– |
| Detection Limit |
2 ng/µL (dsDNA)
0.006 mg/mL (BSA)
0.002 mg/mL (IgG) |
– |
| Center Height (Z height) |
8.5 mm |
| Absorbance Precision |
0.002 A (0.5 mm path) or 1% |
| Absorbance Accuracy |
3% (at 0.97 A at 302 nm) |
| Measurement Time |
< 8 seconds |
| Software Compatibility |
Windows™ 7 and 10 |
| Touchscreen |
Multipoint capacitive touch |
| CPU |
Octa Core ARM® Cortex™ A53 Processor |
| Storage |
32 GB internal storage |
| Glove Compatibility |
Compatible with lab gloves |
| Connectivity |
4× USB ports, Ethernet, and RS 232 |
| Display |
7 inch, 1280×800 HD color display |
| Operating System (OS) |
Android™ |
| Footprint (W×D) |
216×290 mm |
| Weight |
3.0 kg |
*The contents of this document may be changed without notice.
