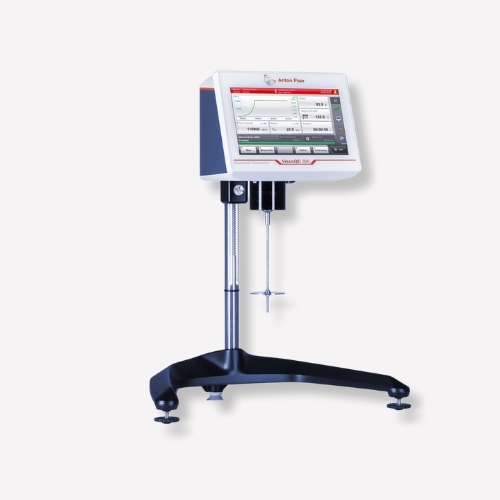

Rotational Viscometer Model ViscoQC 300H
Roll over image to zoom in
₹670,000.00
- Multi-point measurements on 7” color touchscreen
- Viscosity range from 10.6 mPa·s to 320,000,000 mPa·s
- 6 RH spindles to measure high-viscosity samples (ointments, sauces, and many more)
Key features
- The easiest-to-use rotational viscometer – unpack and measure
- Full traceability for reliable viscosity tests
- Be fully compliant within one day
- The most convenient way to generate and export QC data
- Durable parts, maximum uptime
Specifications
| Specification | ViscoQC 100 | ViscoQC 300 | ||
|---|---|---|---|---|
| L | R | L | H | |
| Viscosity test | Single-point | Multi-point | ||
| Viscosity range (mPa·s or cP) (depends on measuring system) |
1.6 mPa·s to 6 M | 6.4 mPa·s to 320 M | 1.3 mPa·s to 6.4 M | 1.3 mPa·s to 320 M |
| Speed (rpm) | 0.1 rpm to 200 rpm (240 increments) |
0.01 rpm to 250 rpm Speed set with 18 standard speeds Freely selectable speeds within the speed range |
||
| Max. spring torque (mNm) | 0.0675 | 7.187 | 0.0675 | 7.187 |
| Accuracy | ±1.0% full scale range | |||
| Repeatability | ±0.2% full scale range | |||
| RheoPlus compatibility | ✖ | ✔ | ||
| PTD 100 Cone-Plate compatibility | ✔ | |||
| ETD 300 compatibility | ✔ | |||
| Peltier temperature control |
+15 °C to +80 °C (for DIN/SSA with PTD 80) 0 °C to +100 °C (for CP with PTD 100 Cone-Plate) |
+15 °C to +80 °C (for DIN/SSA with PTD 80) -20 °C to +175 °C (for DIN/SSA/C, ASTM with PTD 175) 0 °C to +100 °C (for CP with PTD 100 Cone-Plate) |
||
| Electrical temperature control | +25 °C to +330 °C (for SSA/SN with ETD 300) | |||
| Liquid temperature control/heating | Ambient to 100 °C (controlled or LTH spindle with optional thermostatic bath) | |||
| Temperature sensing | 0 °C to 130 °C (temperature sensing with optional PT100) | |||
| User interface | 3.5” color LCD display | 7” color touchscreen display Options: keyboard, mouse, 2D bar code reader |
||
| Languages | EN, DE
