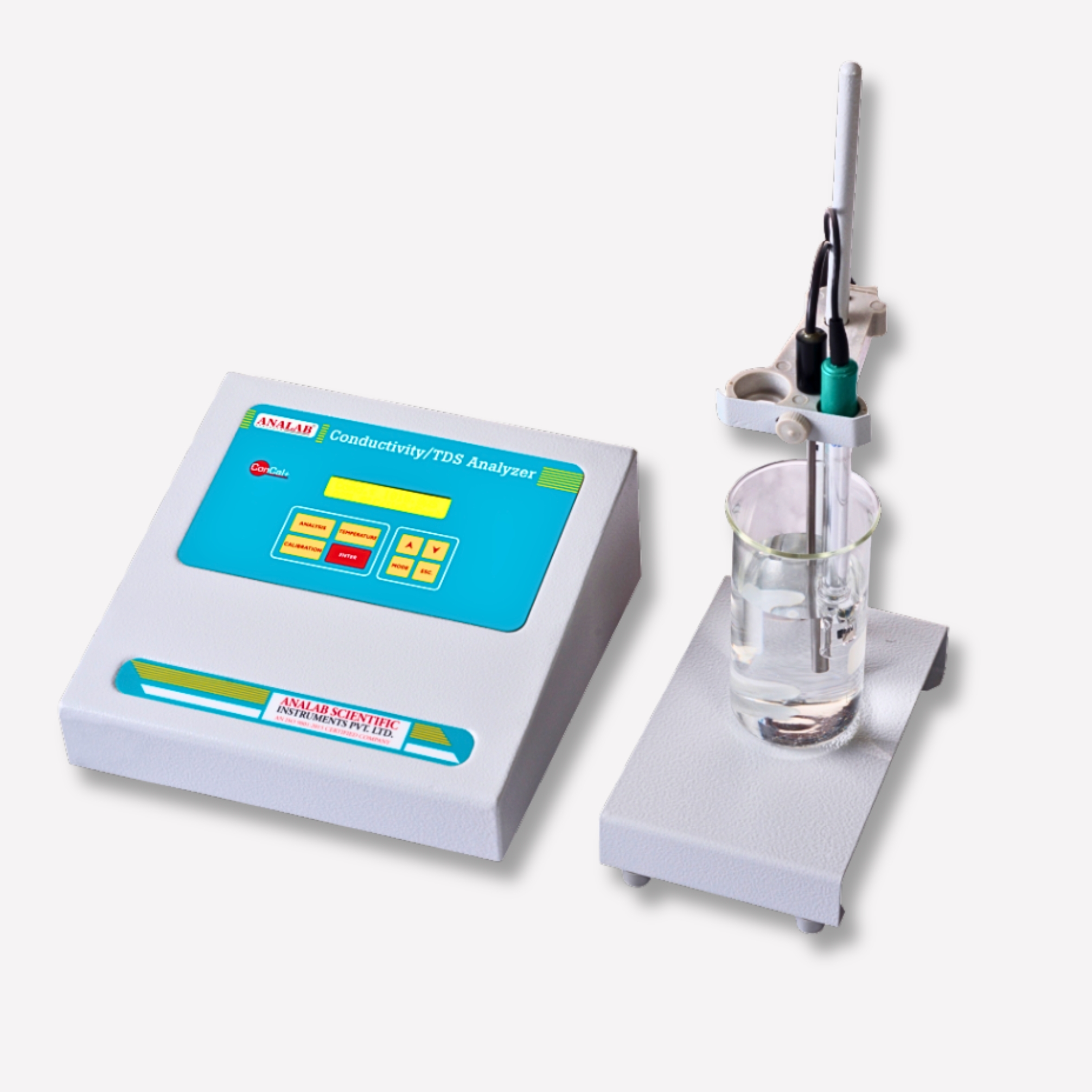

TDS Conductivity Meter
Roll over image to zoom in
Supplied with Conductivity Cell K = 1.0, Temperature Probe, Electrode Stand consists of Clamp, Base Plate & Rod, Dust Cover, DC Adaptor, Instruction & Operational Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.
Technical Specifications
- Conductivity Range : 0-20.00, 20-200.0, 200-2000 µS/cm, 2-20.000, 20-200 mS/cm
- Conductivity Resolution : 0.001, 0.01, 0.1 µS/cm & 0.001, 0.01, 0.1 mS/cm
- TDS Range : 0 to 10, 100, 1000, 10000, 100000 ppm
- TDS Resolution : 0.001, 0.01, 0.1 ppm & 0.001, 0.01 ppt (1ppt=1000ppm)
- Temperature Range : 0.0 to 130.0°C
- Temperature Resolution : 0.1°C
- Temperature Compensation : Auto / Manual
- Temperature Coefficient : 0-10.000 % per °C (Adjustable)
- Temperature Calibration : In-built software and can be calibrated by users
- Number of Range : One
- Calibration Standard : One
- Calibration Factor : One
- Suitable Cell Constant : 1.0 K
- Adjustable Cell Constant : 0.90 to 1.1 K
- Conductivity to TDS Conversion : 0.40000 to 1.00000 (Adjustable Factor)
- Reading : Conductivity at actual temperature and at 25°C and TDS with scrolling Display.
- Error Messages : “Wrong Standard / Cell”, “Cell Short”, “Cell Open”, “Try Upper Range”, “Try Lower Range” & “Temperature Probe Error”.
- Display : 16 x 2 Line Alphanumeric Backlit LCD.
- Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS.
- Calibration Data Storage : Non-Volatile Memory which can store & view calibration cell constant, calibration range, standard conductivity solution, measured conductivity at 25°C, actual temperature, calibration factor etc.
- Power Supply : DC Adaptor
