Comes with
- 1 pc. Stand ViscoQC
- 1 pc. Spindle set RH
- 1 pc. Sticker set L/R/H ViscoQC
- 1 pc. External Power Supply – including connection cable to ViscoQC
- 1 pc. Power cord
- 1 pc. USB Cable
- 1 pc. ViscoQC 100 Instruction Manual and Safety Information
New
Availability: In Stock

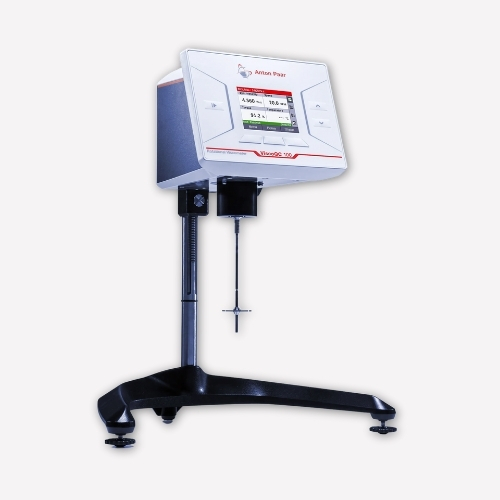

ViscoQC 100 – R Rotational Viscometer
₹450,000.00
- ViscoQC 100 is a rotational viscometer that determines the dynamic viscosity as a single-point value. The R-model is for regular (medium viscosity (e.g. paints, adhesives, dairy products; see also technical specification.
- ViscoQC 100 returns instant results on a built-in colour screen. The Tool master system automatically recognises the connected measuring system (spindles and cylinder system) An optional Pt100 temperature sensor allows the monitoring of the sample temperature.
- A magnetic coupling serves as the connection for spindles or measuring systems. This reduces the risk of bending or damaging parts.
200 in stock
Comes with
Technical specifications:
Technical specifications:
| Measuring Ranges ViscoQC 100 – R | |
|---|---|
| Dynamic Viscosity range depends on the measuring system | 100 mPa·s to 40Mb mPa·s |
| Torque range (10% to 100%) | 0.07187 mNm to 0.7187 mNm |
| Torque resolution | ± 0.1 % of FSR (i.e. 0.7187 µNm) |
| Accuracy | ±1.0 % of FSR (i.e. 7.187 µNm) |
| Repeatability | ±0.2% |
| Speed range | 0.1 rpm to 200 rpm |
| Number of speeds | • Speed list with 18 standard speeds |
| • 1 fixed custom speed C0 | |
| • Up to 6 custom speeds can be added to the speed list | |
| Speed resolution | • 0.1 rpm to 59.9 rpm: 0.1 rpm |
| • > 60 rpm: 1 rpm | |
- Minimum of range attainable if using ViscoQC accessories (e.g. DIN measuring system)
- M = Million
- FSR = Full Scale Range = 100 % torque
-
Rotational Viscometer Model ViscoQC 300L
₹670,000.00 -
Rotational Viscometer Model ViscoQC 100R
₹670,000.00 -
Visco QC 100 – H Rotational Viscometer
₹450,000.00 -
Rotational Viscometer Model ViscoQC 100L
₹450,000.00
