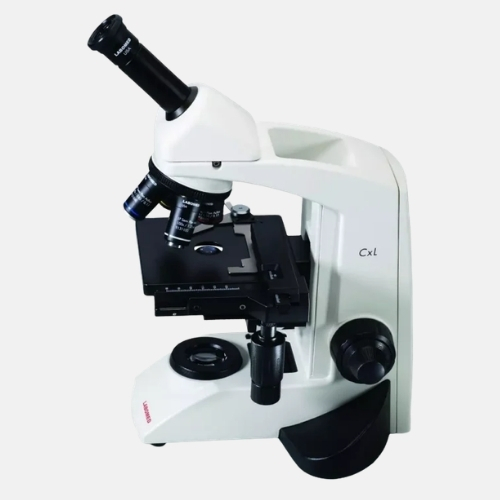

Monocular Miroscope LED Illumination with Battery Back-up

HomepageProductsMicroscopeMonocular Miroscope LED Illumination with Battery Back-up
New
Monocular Miroscope LED Illumination with Battery Back-up
Availability: In Stock

Monocular Miroscope LED Illumination with Battery Back-up

₹33,565.00

The Monocular Microscope with LED Illumination and Battery Backup is a compact and reliable laboratory instrument designed for educational and basic research applications. It features a single eyepiece optical system with high-quality achromatic objectives that provide clear and sharp magnification for biological and material specimen studies. The built-in LED illumination ensures bright, energy-efficient, and long-lasting light output, typically offering over 50,000 hours of service life. The integrated rechargeable battery backup allows uninterrupted operation during power failures, making it highly suitable for classrooms, laboratories, and fieldwork.

SKU: CXL LED Category: Brand:

Technical Specifications:

  • Sturdy stand made of anti-rust materials for long-lasting durability
  • Monocular viewing tube inclined at 45° and 360° rotatable for ergonomic use
  • Wide field eyepiece WF10x/18mm with foldable eye guard and anti-fungus coating, locked in ocular tube
  • Quadruple nosepiece (ball bearing type) for smooth objective switching
  • Mechanical stage with co-axial drive, smooth ball slide movement, stainless steel slide holder, X-Y travel 75mm x 50mm
  • Co-axial coarse and fine focusing system with tension adjustment for precise control
  • Built-in lithium-ion rechargeable battery for portable operation
  • DIN semi-plan achromatic objectives: 10x, 40x (spring loaded), 100x oil immersion (spring loaded) with anti-fungus coating
  • Par-centered and parfocal optical system for accurate alignment and consistent focus
  • Illuminated ON/OFF switch for easy operation

Features

**Features – Monocular Microscope with LED Illumination & Battery Back-up**

  • Monocular viewing head with 45° inclined tube for comfortable observation
  • 360° rotatable head for flexible viewing angles
  • Bright LED illumination with adjustable intensity control
  • Built-in rechargeable battery back-up for uninterrupted usage
  • WF10x/18mm wide field eyepiece with anti-fungus coating
  • Quadruple nosepiece (ball bearing type) for smooth objective switching
  • Achromatic objectives for clear and sharp imaging (10x, 40x, 100x oil immersion)
  • Co-axial coarse and fine focusing system for precise control
  • Mechanical stage with smooth X-Y movement for accurate specimen positioning
  • Anti-rust sturdy base for long-lasting durability
  • Par-centered and parfocal optical system for stable image alignment
  • Illuminated ON/OFF switch for easy operation
  • Suitable for laboratory, educational, and research applications

Specifications:

Specification Details
Model Name/Number CXL-LED
Magnification 100x
Usage/Application Laboratory Use
Focusing Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion system
Light Source Variable intensity control with illuminated ON/OFF
Is It Portable Portable
Microscope Type Monocular Microscope
Illumination Halogen/LED
Power Supply Input 220V – 240V
Weight 9.06 kg
Digital Imaging No
Eye Pieces WF 10x/18mm
Nose Piece Quadruple nosepiece turret (Ball bearing type)
Country of Origin Made in India
