Research Inverted Type Trinocular Microscope

HomepageProductsMicroscopeResearch Inverted Type Trinocular Microscope
New

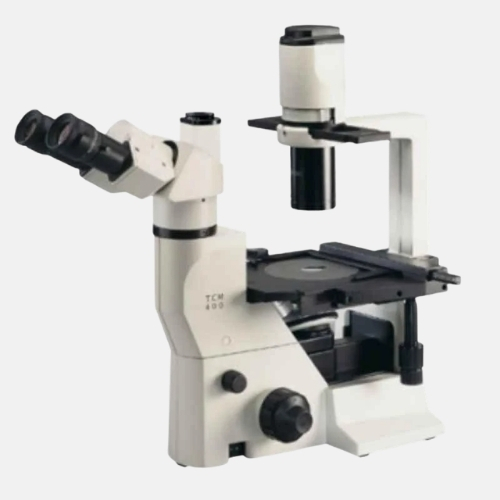

Research Inverted Type Trinocular Microscope
Availability: In Stock

Research Inverted Type Trinocular Microscope

₹280,700.00

The TCM-400 Research Inverted Type Trinocular Microscope is a high-performance laboratory instrument designed for advanced research applications. It features superior optical clarity, an inverted design for live cell observation, and a trinocular port for digital imaging and documentation, making it ideal for biomedical and microbiology studies.

Category: Brand:

Technical Specifications:

Parameter Specification
Type Inverted Research Trinocular Microscope
Optical System Infinity-corrected optical system
Viewing Head Trinocular head, 45° inclined
Magnification Range 40x to 400x (standard configuration)
Eyepieces WF 10x widefield eyepieces with diopter adjustment
Objectives 4x, 10x, 20x, 40x (phase contrast optional)
Nosepiece Quadruple revolving nosepiece
Stage Mechanical stage with culture dish/flask holder
Condenser Long working distance condenser, NA adjustable
Illumination Built-in LED or halogen illumination with intensity control
Focus System Coarse and fine focusing knobs with precision control
Working Distance Extra long working distance for culture vessel observation
Interpupillary Distance Adjustable 50 – 75 mm
Diopter Adjustment ±5 diopter adjustment on eyepieces
Camera Support Trinocular port with C-mount adapter compatibility
Applications Cell culture, microbiology, tissue culture, biomedical research, laboratory analysis


Features

  • High-quality infinity-corrected optical system for sharp and clear imaging
  • Inverted design suitable for live cell culture and large specimen observation
  • Trinocular head for direct camera attachment and digital imaging
  • Ergonomic 45° inclined viewing head for comfortable long-term use
  • Widefield WF 10x eyepieces with diopter adjustment for precise viewing
  • Multiple objectives (4x, 10x, 20x, 40x) for flexible magnification
  • Quadruple revolving nosepiece for quick and easy objective switching
  • Long working distance condenser for culture flask and dish compatibility
  • Built-in LED or halogen illumination with adjustable brightness control
  • Coarse and fine focusing system for accurate image adjustment
  • Mechanical stage with culture dish and flask holder support
  • Adjustable interpupillary distance for user comfort
  • Diopter adjustment for individual eye correction
  • Stable and vibration-free construction for precise laboratory work
  • Ideal for cell culture, microbiology, tissue culture, and biomedical research

Benefits

  • Enables clear observation of live cell cultures without disturbing samples
  • Provides high-resolution imaging for accurate research and analysis
  • Supports digital documentation through trinocular camera integration
  • Improves usability with ergonomic 45° inclined viewing design
  • Allows flexible magnification for different laboratory applications
  • Enhances research efficiency with smooth coarse and fine focusing
  • Facilitates observation of large specimens using inverted structure
  • Reduces eye strain with adjustable interpupillary and diopter settings
  • Delivers stable and vibration-free performance for precise results
  • Improves visibility with controlled LED/halogen illumination system
  • Supports advanced biomedical, microbiology, and tissue culture studies
  • Ideal for long-duration laboratory research and professional use
