Technical Specifications:

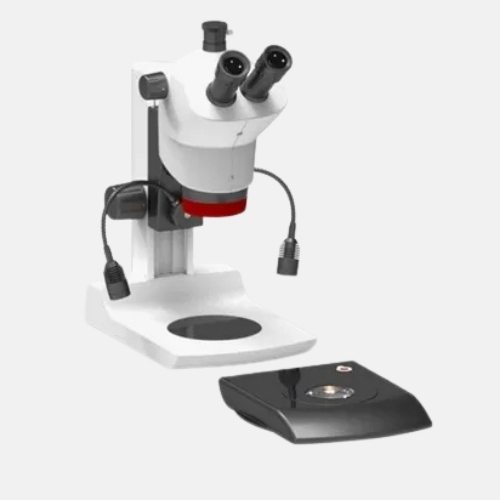

Luxeo-6Z – Stereozoom Binocular Microscope with BF/DF Base Technical Specifications
The Luxeo-6Z Stereozoom Binocular Microscope with BF/DF Base is a high-precision optical system designed for bright field and dark field inspection, offering superior clarity and versatile industrial applications.
| Parameter | Specification |
|---|---|
| Optical System | Greenough stereo zoom optical system |
| Head Type | Binocular head, 45° inclined |
| Magnification Range | Approx. 6.5x to 55x (model dependent) |
| Zoom System | Smooth continuous zoom mechanism |
| Eyepieces | WF 10x / 22mm widefield eyepieces |
| Working Distance | Approx. 110 mm |
| Illumination System | BF/DF (Bright Field / Dark Field) LED base |
| Light Source | High-intensity LED with brightness control |
| Focus System | Coarse focus with rack & pinion mechanism |
| Interpupillary Distance | Approx. 52 – 75 mm adjustable |
| Diopter Adjustment | ±5 diopter on both eyepieces |
| Base | Heavy-duty BF/DF illumination base |
| Power Supply | 100V – 240V AC, 50/60Hz |
| Camera Support | Optional trinocular port with C-mount adapter compatibility |
| Applications | PCB inspection, electronics, metallurgy, precision engineering, material analysis |
