Technical Specifications:
| Parameter | Specification |
|---|---|

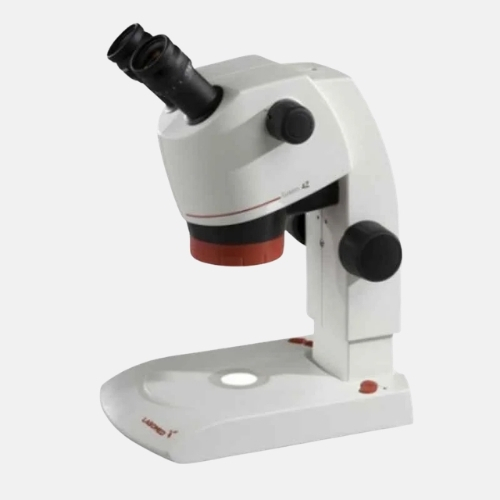

| Model | Luxeo-4Z Stereozoom Microscope |
| Optical System | Stereoscopic Greenough optical system |
| Magnification Range | Continuous zoom (approx. 6.5x to 45x, depending on eyepiece and objectives) |
| Zoom Ratio | 4.4:1 (approx.) |
| Viewing Head | Binocular / Trinocular (optional), 45° inclined, 360° rotatable |
| Eyepiece | WF 10x (standard), optional WF 15x / WF 20x |
| Interpupillary Distance | 54 – 75 mm (approx.) |
| Working Distance | Standard high working distance for industrial inspection |
| Focus System | Coarse focusing with smooth precision adjustment knobs |
| Illumination | Built-in LED incident and transmitted illumination (adjustable intensity) |
| Stand | LED dual light stand with focus mechanism (optional boom/pillar stands) |
| Accessories (Optional) | Ring LED light, polarizing kit, darkfield attachment, camera adapters (CCD/DSLR/digital) |
| Applications | Electronics inspection, PCB work, quality control, laboratory analysis, precision assembly |
