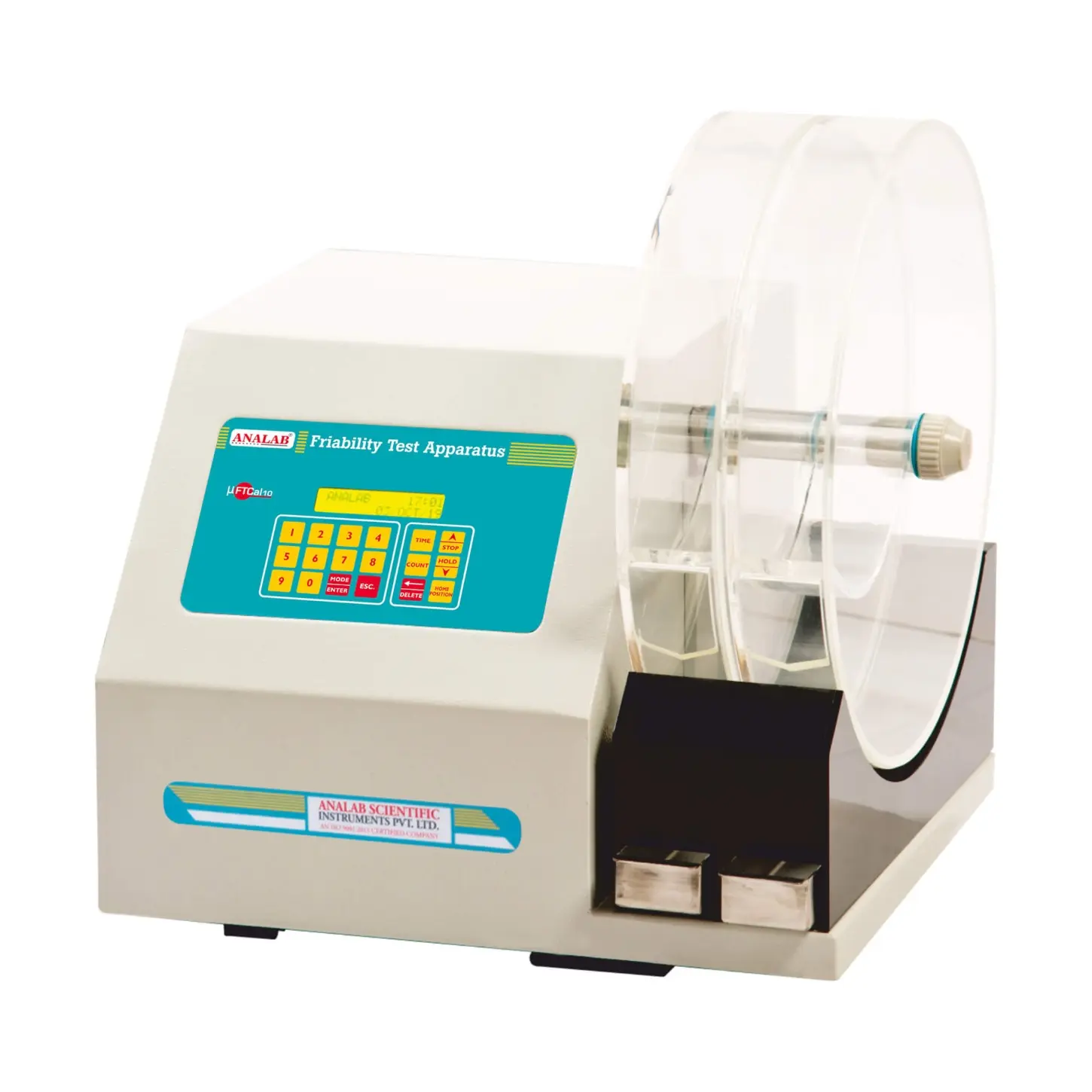

Technical Specification
-
- Speed : Fix 25 RPM
- Timer : Variable from 1 sec. to 9 hrs. 59 min 59 sec.
- Counter : 1 to 9999 revolutions
- No. of Drums : Two
- Pharmacopeia Complies : As per USP, IP, Ph. Eur.
- Tablet Discharge : Automatic in the Sample tray from drum after completion of analysis.
- 10º Tilt : Manual with tilting legs
- Calibration : RPM and Count (Automatic)
- Verification : RPM, Count and Time
- Calculation of result : Friability in %
- Power failure detection : Un-interrupted tablet testing after power resume.
- Display : 16 x 2 Line Alphanumeric Backlit LCD
- Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS
- Analysis Data Storage : More than 500 analysis data which can be viewed & Print, company name, analysis date & time, record number, *Username, *Sample Name, *Bath Number/ID, Set Time / Count, Actual Time / Count, Initial Weight, Final Weight, % Friability, instrument serial number, Instrument Make & Model & *Signature etc. Secondly, analysis data can be print online without saving analysis data in Instrument.
(*: Not possible to enter data by instrument keypad but it will be handwritten) - Searching of data : With record number by scrolling.
- Report Formation : As per Non-GLP Compliance
- Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
- Printer : 40 / 80 Column Dot Matrix Printer (Printer must procure optionally)
- Power Supply : 230VAC ± 10%, 50 Hz
- Dimensions:
● Net Dimension: 36 x 33 x 39 cm (L x W x H)
● Gross Dimension: 48 x 44 x 52 cm (L x W x H) - Weight:
● Net Weight: 8.5 kg
● Gross Weight: 15 kg
