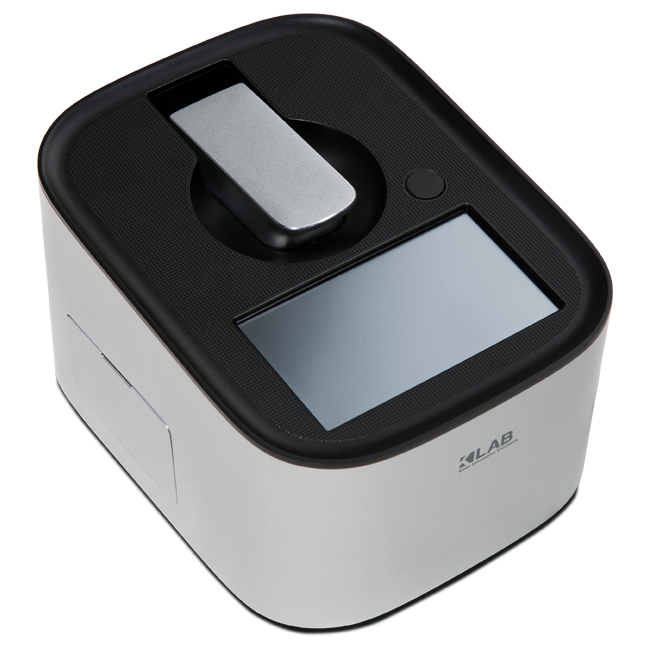

OPTIZEN™ NanoQ Lite

OPTIZEN NanoQ Lite is a small micro sample analyzer with a simple yet sophisticated design and an easy and convenient user interface (UI).

It applies the Slope Algorithm, which is a light path optimization technique,
to enable measurement of a wide range of absorbance.

Main Charateristics

It can measure protein and conduct cell counting.
The measurement result can be saved or downloaded to a USB flash drive or smartphone.
A user can easily operate the system using the intuitive LCD screen and touch functions.
It does not need a separate computer since the main unit performs the control.
The measurement data can be saved in the equipment to improve spatial utilization and economic efficiency.
The lightweight and small spectrophotometer features dimensions of 148 × 179 × 110 mm and a weight of 1.4 kg.
The built-in touch LCD panel helps users operate it easily and conveniently.

Product Qualification

Instrument Type	Microvolume Spectrophotometer
Minimum Sample Volume	1 µL
Sample Number	1
Pathlength	0.03 – 0.5 mm (Auto ranging)
Spectral Resolution	≤ 8.0 nm
Absorbance Precision	0.002 Abs (0.15 mm pathlength)
Absorbance Range	0 – 4 Abs
Detection Limit	About 2 ng/µL (dsDNA)
Maximum Concentration	2,000 ng/µL (dsDNA), 60 mg/mL (BSA), 28.8 mg/mL (IgG)
Photometric Range (10 mm Equivalent)	Cuvette: 0–2 A
Photometric Accuracy	3% (at 1 Abs at 280 nm)
Light Source	LEDs
Measurement Wavelength	260, 280 nm / 600 nm (Cuvette)
Baseline Correction Wavelength	360 nm
Detector	Silicon photodiode
Measurement Time	< 10 seconds
Footprint (W × D)	145 × 190 mm
Weight	1.4 kg
Operating Voltage	12 V (DC)
Power Consumption	Operating: 4.7–5.2 W, Standby: 3.3 W
Display	4.3 inch, Touch screen glove compatible
Display Resolution	480 × 272 pixels (Color display)
Internal Storage	4 GB
Connectivity	USB A, USB B, RS232C
Accessories	Thermal Printer (Optional)
