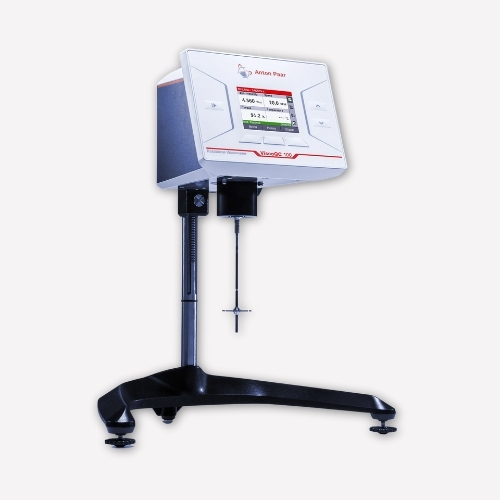

ViscoQC 100 – L Rotational Viscometer
Roll over image to zoom in
₹450,000.00
- ViscoQC 100 is a rotational viscometer that determines the dynamic viscosity as a single-point value. The L-model is for low-viscosity samples (e.g. solvents, oils, juices, shower gel; see also technical specifications).
- ViscoQC 100 returns instant results on a built-in colour screen. The Tool master system automatically recognized connected measuring system (spindles and cylinder system) an optional Pt100 temperature sensor allows the monitoring of the sample temperature.
- A magnetic coupling serves as connection for spindles or measuring systems. This reduces the risk to bend or damage parts.
Comes with
- 1 pc. Stand ViscoQC
- 1 pc. Spindle set L
- 1 pc. Sticker set L/R/H ViscoQC
- 1 pc. External Power Supply – including connection cable to ViscoQC
- 1 pc. Power cord
- 1 pc. USB Cable
- 1 pc. ViscoQC 100 instruction Manual and Safely Information
- 1 pc. Standard Operating Procedure
Technical specifications:
Measuring Ranges ViscoQc 100 – L
| Parameter | Value |
|---|---|
| Dynamic Viscosity Range | 1ᵃ mPa·s to 6Mᵇ mPa·s (depends on measuring system) |
| Torque Range (10% to 100%) | 0.00673 mNm to 0.0673 mNm |
| Torque Resolution | ±0.1 % of FSRᶜ |
| Accuracy | ±1.0 % of FSR (i.e., 0.673 µNm) |
| Repeatability | ±0.2% |
| Speed Range | 0.1 rpm to 200 rpm |
| Number of Speeds |
|
| Speed Resolution |
|
- Minimum of range attainable if using ViscoQC accessories (e.g. DIN measuring system)
- M = Million
- FSR = Full Scale Range = 100 % torque
