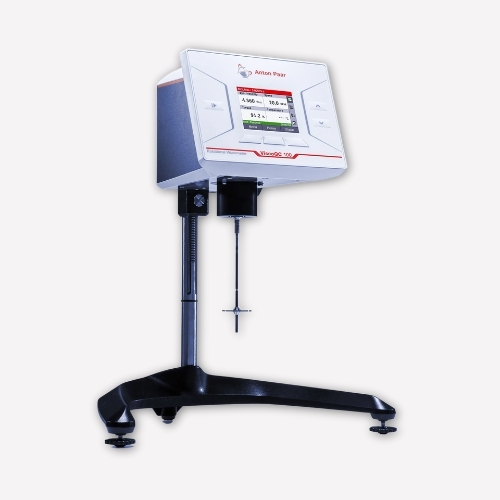

ViscoQC 300 – L Rotational Viscometer
Roll over image to zoom in
₹670,000.00
- ViscoQC 300 is a rotational viscometer that determines the dynamic viscosity. The L-model is for low-viscosity samples (e.g., solvents, oils, juices, shower gel, and technical specifications).
- ViscoQC 300 returns instant results on a built-in colour screen. The built-in software enables users to perform time or shear rate/speed scans.
- Measured data are stored in the data memory and can be printed or exported. CSV or .pdf format. LIMS bridge software allows the data transfer for implementation in LIMS.
- The Tool master system automatically recognises the connected measuring system (spindles and cylinder system). An optional Pt100 temperature sensor allows the monitoring of the sample temperature.
- A magnetic coupling serves as the connection for spindles or measuring systems. This reduces the risk of bending or damaging parts.
Comes with:
- 1 pc. Stand ViscoQC
- 1 pc. Spindle set L
- 1 pc. Sticker set L/R/H ViscoQC
- 1 pc. External Power Supply – including connection cable to ViscoQC
- 1 pc. Power cord
- 1 pc. USB Cable
- 1 pc. ViscoQC 300 instruction Manual and Safely Information
- 1 pc. Standard Operating Procedure
- Free data collection software V-collect >> download link: anton-paar.com/viscoqc-wedpack-lb
Technical specifications:
| Measuring Ranges ViscoQC 300 – L | |
|---|---|
| Dynamic Viscosity range depends on the measuring system | 11 mPa·s to 6Mb mPa·s |
| Torque range (10% to 100%) | 0.00673 mNm to 0.0673 mNm |
| Torque resolution | ± 0.1 % of FSR (i.e. 0.0673 µNm) |
| Accuracy | ±1.0 % of FSR (i.e. 0.673 µNm) |
| Repeatability | ±0.2% |
| Speed range | 0.01 rpm to 250 rpm |
| Number of speeds | • Speed list with 18 standard speeds |
| • 1 fixed custom speed c0 (200 rpm) | |
| • Freely selectable speeds within the speed range | |
| Speed resolution | • 0.01 rpm to 9.99 rpm: 0.01 rpm |
| • 10 rpm to 59.9 rpm: 0.1 rpm | |
| • > 60 rpm: 1 rpm | |
- Minimum of range attainable if using ViscoQC accessories (e.g. DIN measuring system )
- M = Million
- FSR = Full Scale Range = 100 % torque
