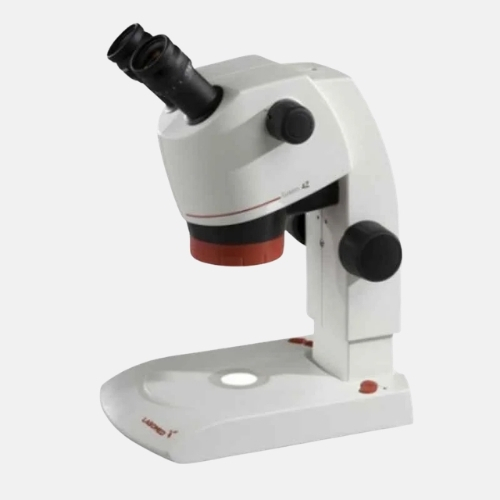

Stereozoom Trinocular Microscope Luxeo-4Z

Name: Binocular LED Research Microscope for Modern Labs
Price: 108080.00 INR
Availability: InStock

₹108,080.00

The Luxeo-4Z Stereozoom Trinocular Microscope is a high-performance optical instrument designed for precise inspection and imaging applications. It features a smooth zoom range of 8x to 35x, advanced Greenough optical system, and bright LED illumination for clear, high-contrast 3D viewing. With a trinocular head, it allows simultaneous visual observation and digital image capture, making it ideal for laboratory research, electronics inspection, and industrial quality control.

Category: Microscope Brand: Labomed

Technical Specifications:

Stereozoom Trinocular Microscope Luxeo-4Z Technical Specification

Optical System

Greenough Optical System
High precision stereo zoom optics

Magnification

Continuous Zoom Range: 8x – 35x
Zoom Ratio: 4.4:1

Eyepieces

Widefield WF 10x / 20mm (interchangeable)

Viewing Head

Trinocular Head (45° inclined)
Interpupillary distance: approx. 52–74 mm
Diopter adjustment: ±5 diopters

Working Distance

100 mm

Field of View

Object field diameter: approx. 6.6 mm – 28.5 mm

Illumination System

LED transmitted illumination (3 LED super bright system)
Incident LED illumination with oblique angle ±30°
Independent intensity control (rheostat)
Low heat, daylight white (~6500K)
LED life: up to 25,000 hours

Power Supply

Universal input: 100V – 240V AC, 50/60Hz
Integrated voltage stabilizer

Mechanical Construction

Precision zoom body with smooth rack & pinion focusing
Heavy-duty stable stand for vibration-free operation
Ergonomic design for long-duration use

Trinocular Imaging System

Third port for camera attachment
C-mount adapter compatible (0.3x / 0.5x / 0.7x)
Supports digital imaging & documentation

Applications

Electronics inspection
Industrial quality control
Textile and fiber analysis
Biological specimen observation
Jewelry and precision inspection

Features

High-precision Greenough optical system for clear stereo imaging
Continuous zoom range from 8x to 35x for flexible magnification
Trinocular head for camera attachment and digital imaging support
Ergonomic 45° inclined viewing head for comfortable usage
Widefield WF 10x eyepieces for bright and sharp images
Long 100 mm working distance for easy sample handling
Dual illumination system: LED incident (top) and transmitted (bottom)
Adjustable brightness control with rheostat for optimal lighting
High-quality daylight LED (~6500K) with long operational life
C-mount compatibility for digital camera integration
Smooth rack & pinion focusing mechanism for precise control
Stable and vibration-free base for accurate observations
Suitable for industrial inspection, lab research, and quality control

Benefits

**Title: Stereozoom Trinocular Microscope Luxeo-4Z Benefits**

**Description:**
The Luxeo-4Z Stereozoom Trinocular Microscope delivers high precision, superior optical clarity, and flexible imaging capabilities, making it ideal for professional inspection, research, and documentation needs.

—

## ✅ Benefits

Provides high-resolution stereo imaging for accurate inspection results
Enables smooth zoom control for detailed observation at multiple magnifications
Supports digital documentation through trinocular camera attachment
Reduces eye strain with ergonomic 45° inclined viewing head
Delivers bright and clear visuals with high-quality LED illumination
Improves workflow efficiency in industrial and laboratory environments
Ensures precise focusing for better accuracy during inspection tasks
Allows easy handling of samples with long working distance design
Enhances visibility of fine details in electronics, textile, and biological samples
Offers stable performance with vibration-free construction
Supports continuous usage with long-life LED lighting system
Versatile usage across quality control, research, and inspection applications
