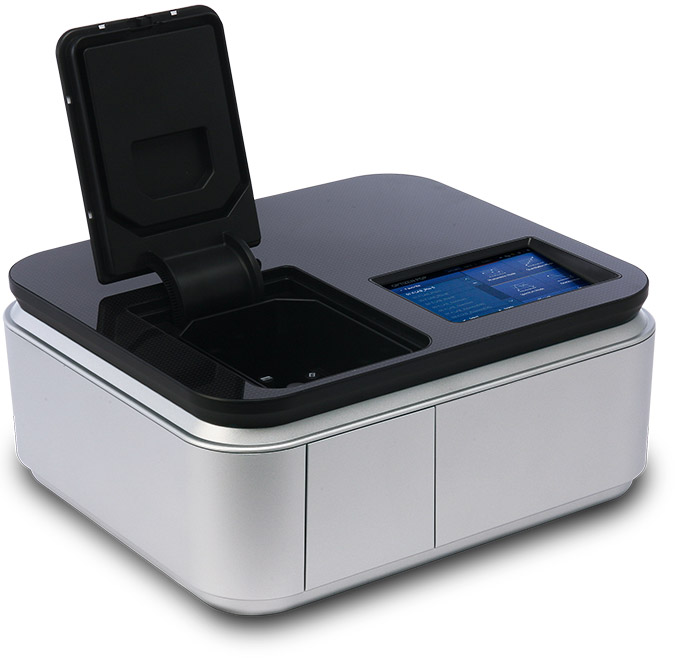

OPTIZEN™ POP
Roll over image to zoom in
OPTIZEN POP measures transmittance or absorbance for each wavelength of a sample in the ultraviolet and visible ray bands, and through this, quantitative characteristics such as concentration and purity can be identified.
OPTIZEN POP, which can be used widely from general analysis experiments to specialized research fields, guarantees accurate measurement and excellent reproducibility, providing reliable results in various fields such as environment, biotechnology, and chemistry.
Product Features
Product function
- Help is presented in an easy-to-understand graphical format.
- If you register the information being measured, analyzed, or completed as a favorite, you can quickly and easily call it up and work with it.
- Can be used in conjunction with PC through OPTIZEN View.
- It is possible to measure in an optimal state by checking the operating time of the equipment, the preheating status of the lamp, and the accumulated usage time in real time.
- It is possible to select the cell type and monitor the measurement without entering a mode, and the quick menu cell type icon changes depending on the cell type status or location, making it easy to check the current cell status.
- It employs a temperature measurement system as standard, allowing for temperature confirmation and recording at the moment of analysis.
- It supports convenient voice guidance and volume control function.
- It comes equipped with a multi-cell system as standard, enabling automatic measurement of a large quantity of samples.
Product Qualification
| Photometric System | Single beam type |
|---|---|
| Light Source(s) | Tungsten Halogen Lamp & Deuterium Lamp [Built-in light source auto interchanging motor] |
| Detector | Silicon Photodiode |
| Spectral Bandwidth | < 1.8 nm |
| Wavelength Range | 190 to 1100 nm |
| Wavelength Display (setting) | 0.1 nm |
| Wavelength Accuracy | < ±0.5 nm |
| Wavelength Repeatability | < ±0.1 nm |
| Wavelength Slew Rate | 7,800 nm/min |
| Scanning Speed (Max) | 4,000 nm/min |
| Lamp Interchange Wavelength | 340 to 410 nm (Default 370 nm) |
| Photometric Range | 3 Abs |
| Photometric Display | Absorbance: -3.0 to 3.0A Transmittance: 0% to 400% |
| Photometric Accuracy | < ±0.003 Abs at 0.5 Abs < ±0.005 Abs at 1.0 Abs ≤ ±0.3% T (NIST 930D SRM) |
| Baseline Stability | < 0.0003 Abs/h (700 nm, after one hour warm up) |
| Baseline Flatness | < 0.0005 Abs (190 to 1100 nm, after one hour warm up) |
| Stray Light | < 0.1% T (at 220 nm with 1.2% NaI) < 0.05% T (at 340 nm with 0.05% NaNO₂) |
| Photometric Noise | < 0.00005 Abs rms (at 700 nm) |
| Monochromator | Czerny Turner Monochromator |
| Standard Cell Holder | Multi-cell (6 cells) |
| Operating System (OS) | Android |
| Display | 7 inch (Resolution: 1280 × 800) |
| Control Options | Stand alone PC |
| Dimensions (W×D×H) | 433 × 381 × 189 mm |
| Power Requirement | AC 100-240V, 50/60Hz, 140VA |
| Weight | 10.5 kg |
| PC Software | (optional) View for Windows |
| Connectivity | RJ45 ethernet / PC, printer USB A type × 2, USB B type × 1 RS 232 × 1, USB B type × 1 (Debugging & FW update) |
