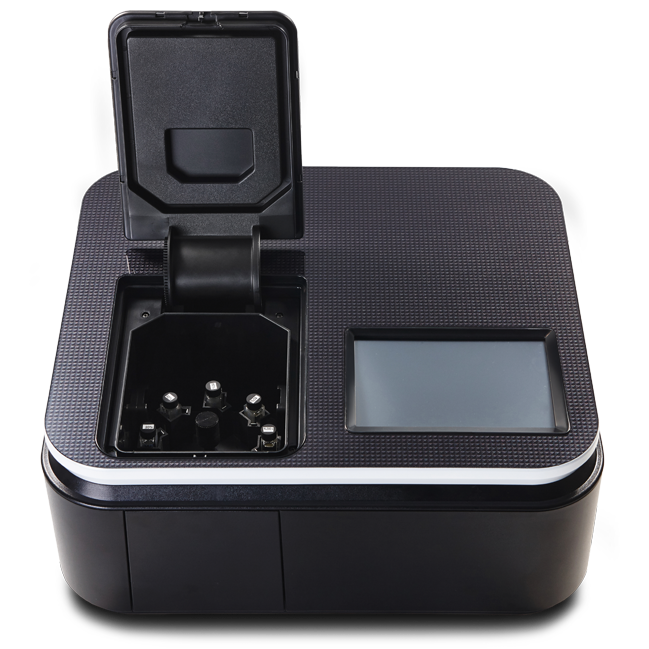

OPTIZEN™ POP-V
Roll over image to zoom in
OPTIZEN POP-V are single-beam type spectrophotometers and offer stable performance, compact size, and reasonable price to the users.
The series are categorized into POP, POP-S, and POP-V
according to the specifications of the products.
Main Charateristics
- Checking and recording the temperature at the analysis moment by applying the temperature measurement system.
- Offering ARM Cortex™ – A8 processor and supporting basic 16GB storage.
- It can measure automatically lots of samples by using Multi Cell.
- Supporting convenient voice service and volume control function.
- Supporting network printer.
Product Qualification
| Photometric System | Single beam type |
|---|---|
| Light Source(s) | Tungsten halogen lamp |
| Detector | Silicon Photodiode |
| Spectral Bandwidth | < 1.8 nm |
| Wavelength Range | 340 to 1100 nm |
| Wavelength Display (setting) | 0.1 nm |
| Wavelength Accuracy | < ±0.5 nm |
| Wavelength Repeatability | < ±0.2 nm |
| Wavelength Slew Rate | 7,800 nm/min |
| Scanning Speed (Max) | 4,000 nm/min |
| Photometric Range | 3 Abs |
| Photometric Display | Absorbance: -3.0A to 3.0A Transmittance: 0% to 300% |
| Photometric Accuracy |
< ±0.003 Abs at 0.5 Abs < ±0.005 Abs at 1.0 Abs ≤ ±0.3% T (NIST SRM 930D) |
| Baseline Stability | < 0.0003 Abs/h (700 nm, after one hour warm-up) |
| Baseline Flatness | < 0.0005 Abs rms (340 to 1100 nm, after one hour warm-up) |
| Stray Light | < 0.1% T (at 340 nm with 0.5% NaNO₂) |
| Photometric Noise | < 0.00002 Abs rms (at 700 nm) |
| Monochromator | Czerny Turner Monochromator |
| Standard Cell Holder | Multi-cell (6 cells) |
| Operating System (OS) | Android |
| Display | 7 inch (Resolution: 1280 × 800) |
| Control Options | Stand alone PC |
| Dimensions (W×D×H) | 433 × 381 × 189 mm |
| Power Requirement | AC 100–240V, 50/60Hz, 140VA |
| Weight | 10.5 kg |
| PC Software | (optional) View for Windows |
| Connectivity |
RJ45 ethernet (PC, printer) USB A type × 2, USB B type × 1 RS 232 × 1, USB B type × 1 (Debugging & FW update) |
